Tempest TR9-12

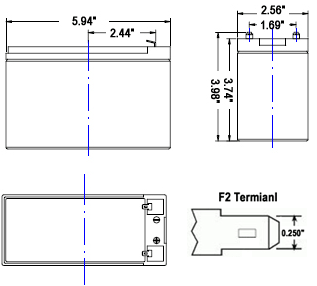

Nominal Voltage 12 V Rated Capacity (20 hour rate) 9AH Dimension Total Height (with terminals) 3.98 in Height 3.74in Length 5.94 in Width 2.56 in Weight (Approx)  6.00 lbs

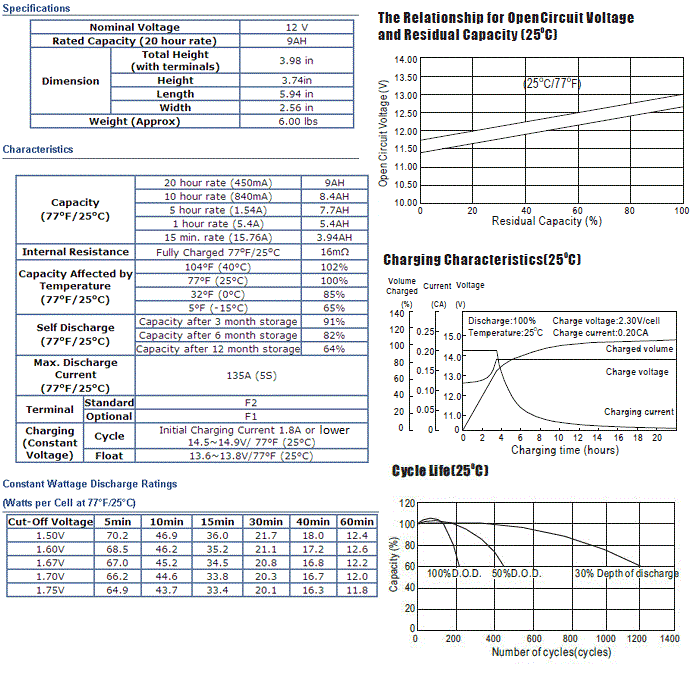

Capacity (77oF/25oC) 20 hour rate (450mA) 9AH 10 hour rate (840mA) 8.4AH 5 hour rate (1.54A) 7.7AH 1 hour rate (5.4A) 5.4AH 15 min. rate (15.76A) 3.94AH Internal Resistance Fully Charged 77oF/25oC 16mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 135A (5S) Terminal Standard F2 Optional F1 Charging (Constant Voltage) Cycle Initial Charging Current 1.8A or small 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 70.2 46.9 36.0 21.7 18.0 12.4 1.60V 68.5 46.2 35.2 21.1 17.2 12.6 1.67V 67.0 45.2 34.5 20.8 16.8 12.2 1.70V 66.2 44.6 33.8 20.3 16.7 12.0 1.75V 64.9 43.7 33.4 20.1 16.3 11.8
