Tempest TR80-12A

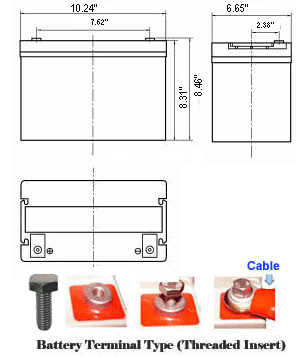

Nominal Voltage 12 V Rated Capacity (20 hour rate) 80AH Dimension Total Height (with terminals) 8.46 in Height 8.31 in Length 10.24 in Width 6.65 in Weight (Approx) 62.83 lbs

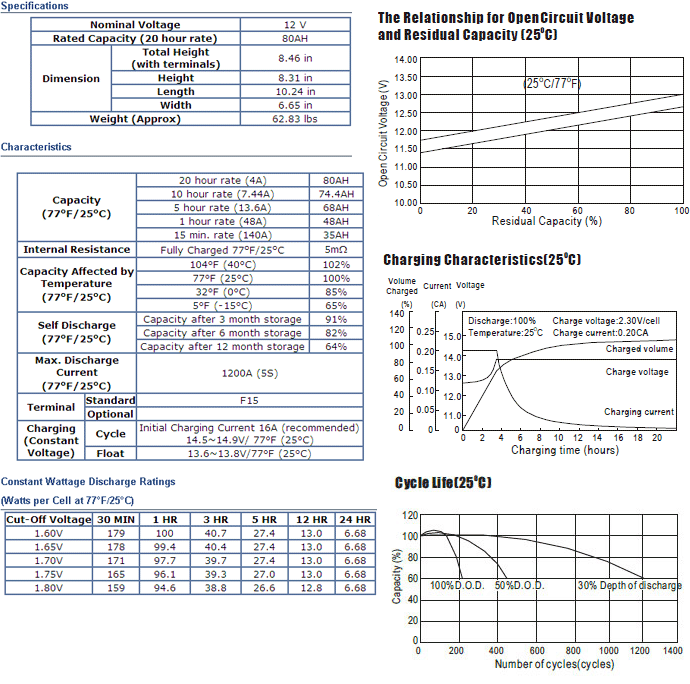

Capacity (77oF/25oC) 20 hour rate (4A) 80AH 10 hour rate (7.44A) 74.4AH 5 hour rate (13.6A) 68AH 1 hour rate (48A) 48AH 15 min. rate (140A) 35AH Internal Resistance Fully Charged 77oF/25oC 5mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 1200A (5S) Terminal Standard F15 Optional   Charging (Constant Voltage) Cycle Initial Charging Current 16A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 30 MIN 1 HR 3 HR 5 HR 12 HR 24 HR 1.60V 179 100 40.7 27.4 13.0 6.68 1.65V 178 99.4 40.4 27.4 13.0 6.68 1.70V 171 97.7 39.7 27.4 13.0 6.68 1.75V 165 96.1 39.3 27.0 13.0 6.68 1.80V 159 94.6 38.8 26.6 12.8 6.68
