Tempest TR7-6

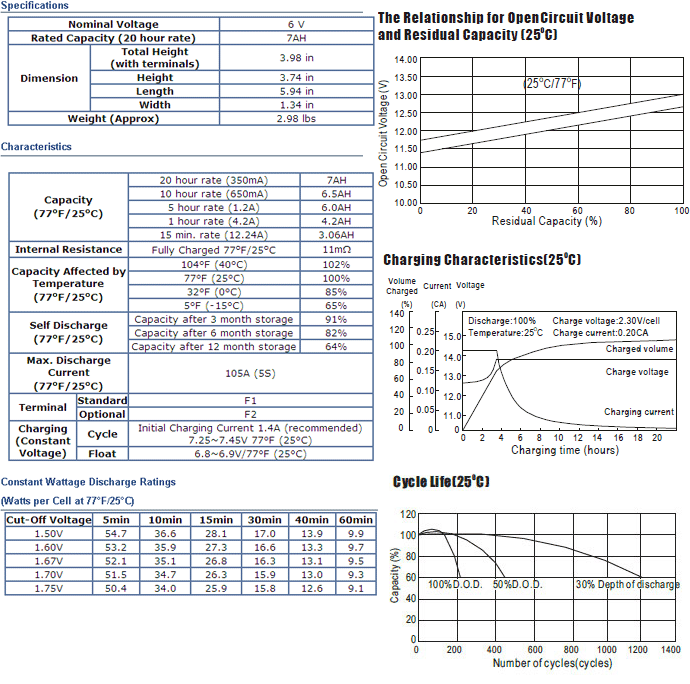

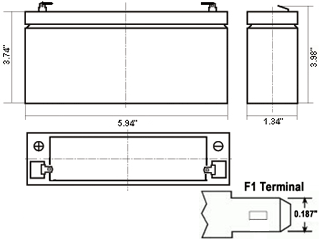

Nominal Voltage 6 V Rated Capacity (20 hour rate) 7AH Dimension Total Height (with terminals) 3.98 in Height 3.74 in Length 5.94 in Width 1.34 in Weight (Approx) 2.98 lbs

Capacity (77oF/25oC) 20 hour rate (350mA) 7AH 10 hour rate (650mA) 6.5AH 5 hour rate (1.2A) 6.0AH 1 hour rate (4.2A) 4.2AH 15 min. rate (12.24A) 3.06AH Internal Resistance Fully Charged 77oF/25oC 11mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 105A (5S) Terminal Standard F1 Optional F2 Charging (Constant Voltage) Cycle Initial Charging Current 1.4A (recommended) 7.25~7.45V 77°F (25°C) Float 6.8~6.9V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 54.7 36.6 28.1 17.0 13.9 9.9 1.60V 53.2 35.9 27.3 16.6 13.3 9.7 1.67V 52.1 35.1 26.8 16.3 13.1 9.5 1.70V 51.5 34.7 26.3 15.9 13.0 9.3 1.75V 50.4 34.0 25.9 15.8 12.6 9.1
