Tempest TR60-6

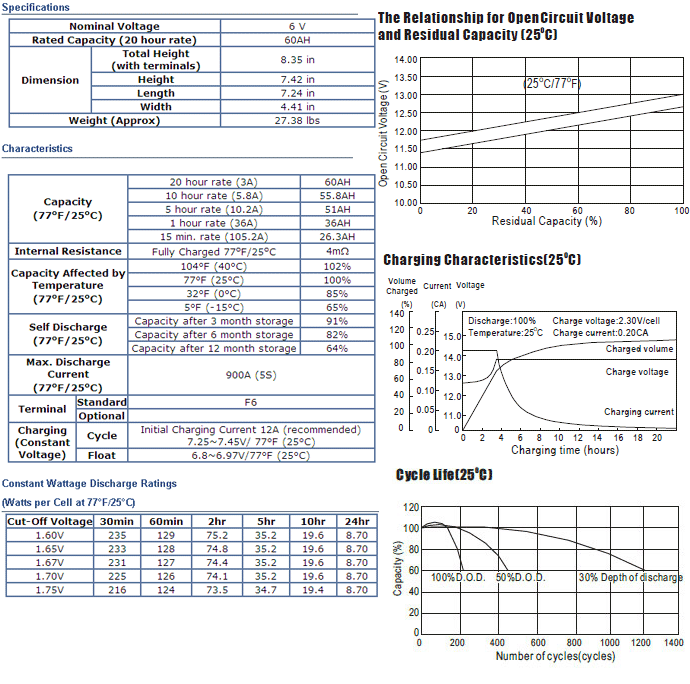

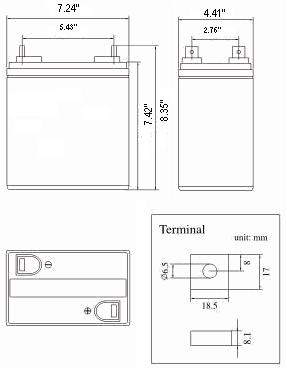

Nominal Voltage 6 V Rated Capacity (20 hour rate) 60AH Dimension Total Height (with terminals) 8.35 in Height 7.42 in Length 7.24 in Width 4.41 in Weight (Approx) 27.38 lbs

Capacity (77oF/25oC) 20 hour rate (3A) 60AH 10 hour rate (5.8A) 55.8AH 5 hour rate (10.2A) 51AH 1 hour rate (36A) 36AH 15 min. rate (105.2A) 26.3AH Internal Resistance Fully Charged 77oF/25oC 4mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 900A (5S) Terminal Standard F6 Optional   Charging (Constant Voltage) Cycle Initial Charging Current 12A (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.97V/77°F (25°C)

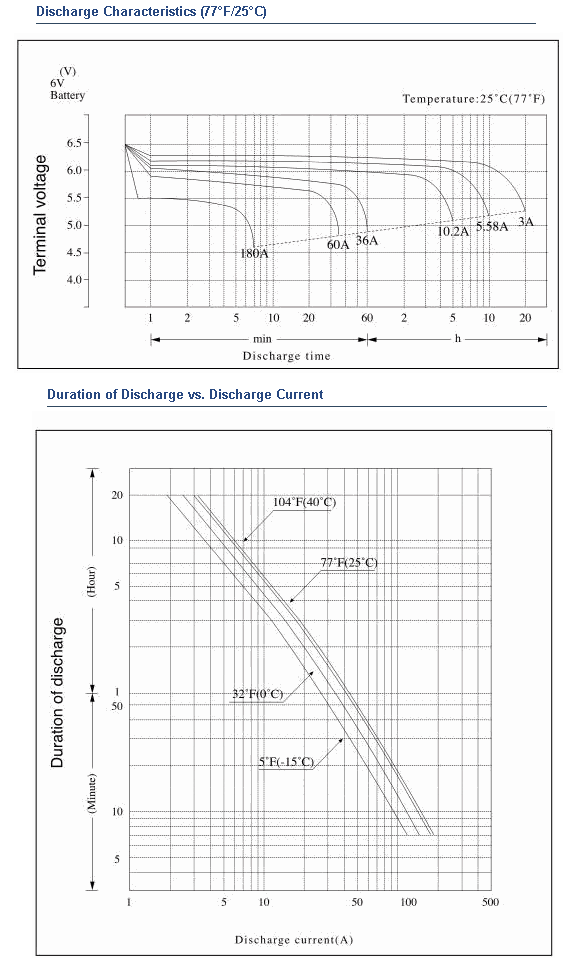

Cut-Off Voltage 30min 60min 2hr 5hr 10hr 24hr 1.60V 235 129 75.2 35.2 19.6 8.70 1.65V 233 128 74.8 35.2 19.6 8.70 1.67V 231 127 74.4 35.2 19.6 8.70 1.70V 225 126 74.1 35.2 19.6 8.70 1.75V 216 124 73.5 34.7 19.4 8.70
