Tempest TR5-6B

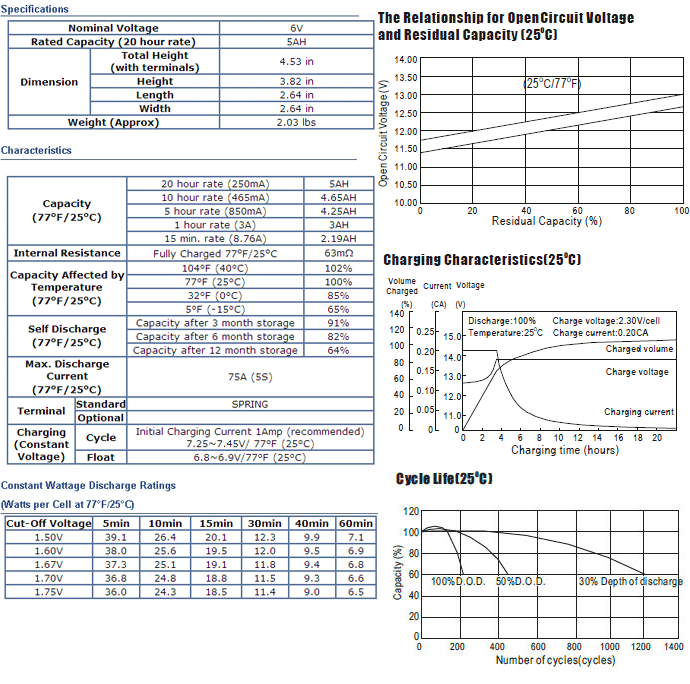

Nominal Voltage 6V Rated Capacity (20 hour rate) 5AH Dimension Total Height (with terminals) 4.53 in Height 3.82 in Length 2.64 in Width 2.64 in Weight (Approx) 2.03 lbs

Capacity (77oF/25oC) 20 hour rate (250mA) 5AH 10 hour rate (465mA) 4.65AH 5 hour rate (850mA) 4.25AH 1 hour rate (3A) 3AH 15 min. rate (8.76A) 2.19AH Internal Resistance Fully Charged 77oF/25oC 63mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 75A (5S) Terminal Standard SPRING Optional   Charging (Constant Voltage) Cycle Initial Charging Current 1A (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.9V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 39.1 26.4 20.1 12.3 9.9 7.1 1.60V 38.0 25.6 19.5 12.0 9.5 6.9 1.67V 37.3 25.1 19.1 11.8 9.4 6.8 1.70V 36.8 24.8 18.8 11.5 9.3 6.6 1.75V 36.0 24.3 18.5 11.4 9.0 6.5
