Tempest TR45-12

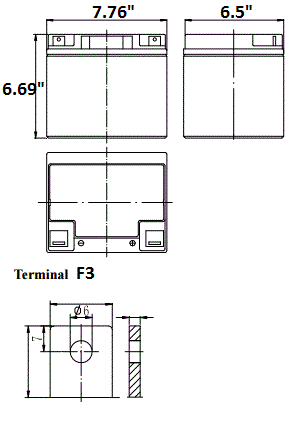

Nominal Voltage 12 V Rated Capacity (20 hour rate) 45AH Dimension Total Height (with terminals) 6.85 in Height 6.85 in Length 7.80 in Width 6.54 in Weight (Approx) 35.7lbs

Capacity (77oF/25oC) 20 hour rate (2.25A) 45AH 10 hour rate (4.19A) 41.9AH 5 hour rate (7.66A) 38.3AH 1 hour rate (27A) 27AH 15 min. rate (87.8A) 19.70AH Internal Resistance Fully Charged 77oF/25oC 6mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 675A (5S) Terminal Standard F6 Optional  F13 Charging (Constant Voltage) Cycle Initial Charging Current 9A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.60V 312 216 172 102 75.4 61.0 1.65V 309 215 171 102 74.7 60.2 1.67V 305 213 167 101 73.8 59.7 1.70V 297 209 165 97.9 72.3 58.9 1.75V 288 202 159 95.5 70.8 57.9
