Tempest TR42-6

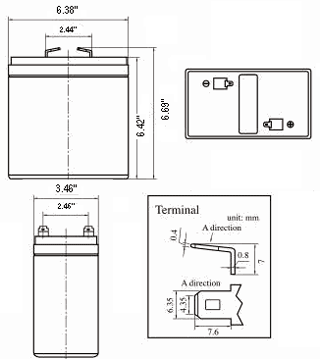

Nominal Voltage 6 V Rated Capacity (20 hour rate) 42AH Dimension Total Height (with terminals) 6.69 in Height 6.42 in Length 6.38 in Width 3.46 in Weight (Approx) 13.67 lbs

Capacity (77oF/25oC) 20 hour rate (2.1A) 44.00AH 10 hour rate (3.91A) 42.00AH 5 hour rate (7.14A) 38.00AH 1 hour rate (25.2A) 25.40AH 15 min. rate (73.5A) / Internal Resistance Fully Charged 77oF/25oC 6.2mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 210A (5S) Terminal Standard F2 Optional   Charging (Constant Voltage) Cycle Initial Charging Current 8.4A (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.97V/77°F (25°C)

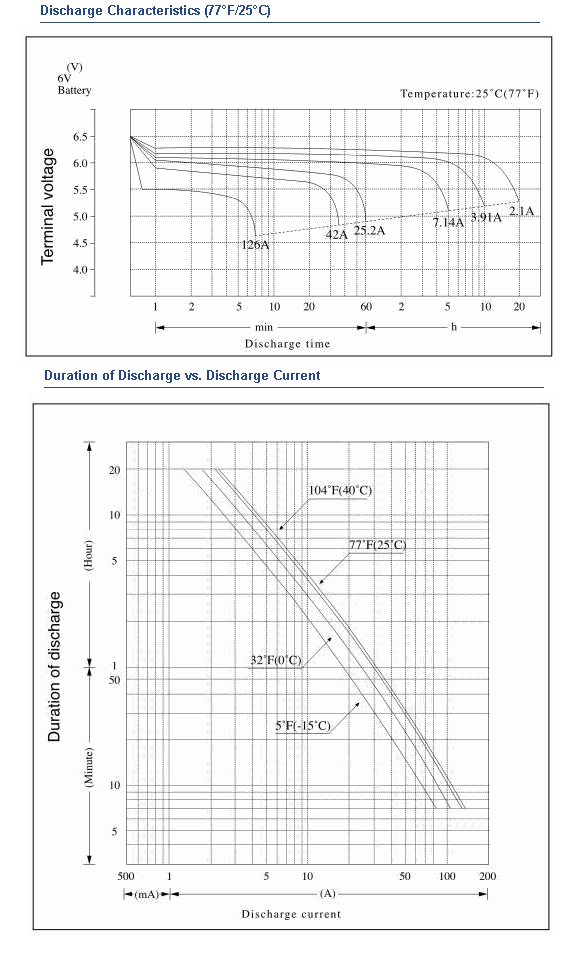

Cut-Off Voltage 30 min 1 hr 3 hr 5hr 12 hr 24 hr 1.60V 97.1 58.4 23.7 15.9 7.26 3.72 1.65V 96.7 57.7 23.4 15.9 7.26 3.72 1.70V 93.1 56.4 22.9 15.9 7.26 3.72 1.75V 91.0 55.4 22.7 15.6 7.26 3.72 1.80V 88.9 54.4 22.4 15.4 7.20 3.72
