Tempest TR4-6A

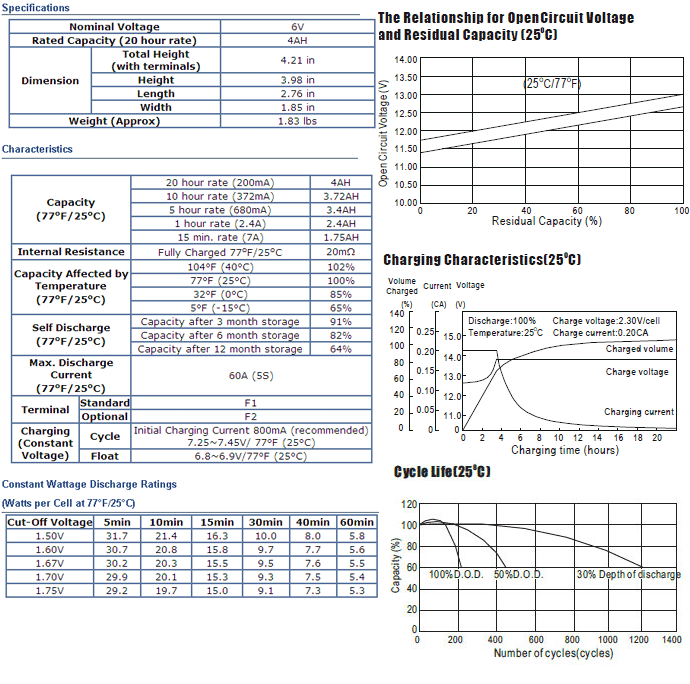

Nominal Voltage 6V Rated Capacity (20 hour rate) 4AH Dimension Total Height (with terminals) 4.21 in Height 3.98 in Length 2.76 in Width 1.85 in Weight (Approx) 1.83 lbs

Capacity (77oF/25oC) 20 hour rate (200mA) 4AH 10 hour rate (372mA) 3.72AH 5 hour rate (680mA) 3.4AH 1 hour rate (2.4A) 2.4AH 15 min. rate (7A) 1.75AH Internal Resistance Fully Charged 77oF/25oC 20mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 60A (5S) Terminal Standard F1 Optional F2 Charging (Constant Voltage) Cycle Initial Charging Current 800mA (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.9V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 31.7 21.4 16.3 10.0 8.0 5.8 1.60V 30.7 20.8 15.8 9.7 7.7 5.6 1.67V 30.2 20.3 15.5 9.5 7.6 5.5 1.70V 29.9 20.1 15.3 9.3 7.5 5.4 1.75V 29.2 19.7 15.0 9.1 7.3 5.3
