Tempest TR26-12B

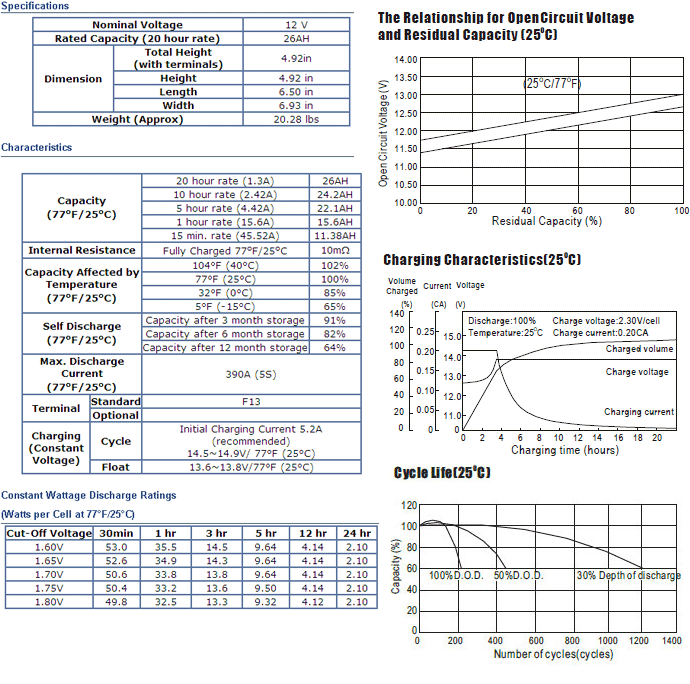

Nominal Voltage 12 V Rated Capacity (20 hour rate) 26AH Dimension Total Height (with terminals) 4.92in Height 4.92 in Length 6.50 in Width 6.93 in Weight (Approx) 20.28 lbs

Capacity (77oF/25oC) 20 hour rate (1.3A) 26AH 10 hour rate (2.42A) 24.2AH 5 hour rate (4.42A) 22.1AH 1 hour rate (15.6A) 15.6AH 15 min. rate (45.52A) 11.38AH Internal Resistance Fully Charged 77oF/25oC 10mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 390A (5S) Terminal Standard F13 Optional   Charging (Constant Voltage) Cycle Initial Charging Current 5.2A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 30min 1 hr 3 hr 5 hr 12 hr 24 hr 1.60V 53.0 35.5 14.5 9.64 4.14 2.10 1.65V 52.6 34.9 14.3 9.64 4.14 2.10 1.70V 50.6 33.8 13.8 9.64 4.14 2.10 1.75V 50.4 33.2 13.6 9.50 4.14 2.10 1.80V 49.8 32.5 13.3 9.32 4.12 2.10
