Tempest TR220-6

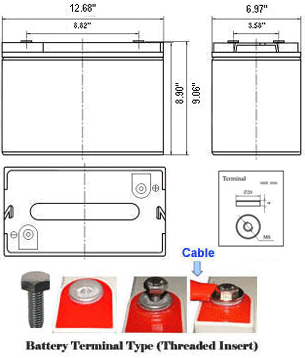

Nominal Voltage 6 V Rated Capacity (20 hour rate) 220AH Dimension Total Height (with terminals) 9.06 in Height 8.90 in Length 12.68 in Width 6.97 in Weight (Approx) 79.37 lbs

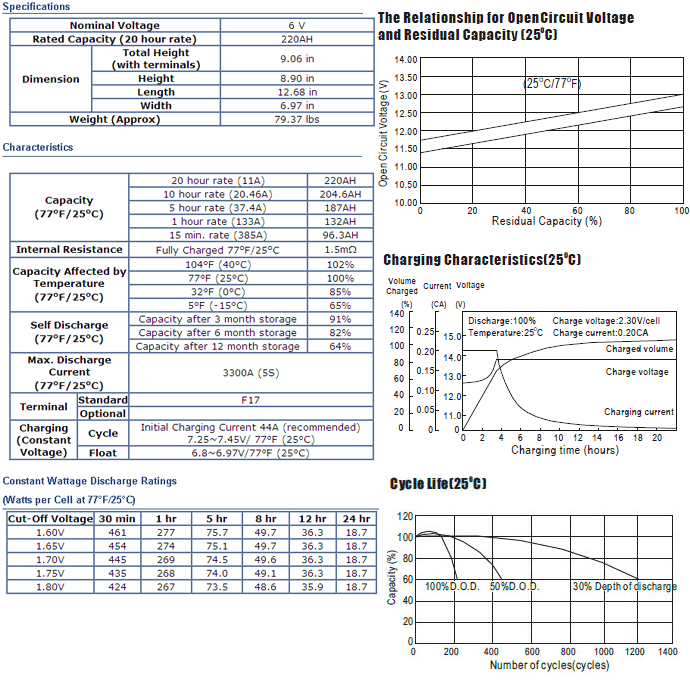

Capacity (77oF/25oC) 20 hour rate (11A) 220AH 10 hour rate (20.46A) 204.6AH 5 hour rate (37.4A) 187AH 1 hour rate (133A) 132AH 15 min. rate (385A) 96.3AH Internal Resistance Fully Charged 77oF/25oC 1.5mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 3300A (5S) Terminal Standard F17 Optional   Charging (Constant Voltage) Cycle Initial Charging Current 44A (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.97V/77°F (25°C)

Cut-Off Voltage 30 min 1 hr 5 hr 8 hr 12 hr 24 hr 1.60V 461 277 75.7 49.7 36.3 18.7 1.65V 454 274 75.1 49.7 36.3 18.7 1.70V 445 269 74.5 49.6 36.3 18.7 1.75V 435 268 74.0 49.1 36.3 18.7 1.80V 424 267 73.5 48.6 35.9 18.7
