Tempest TR22-12

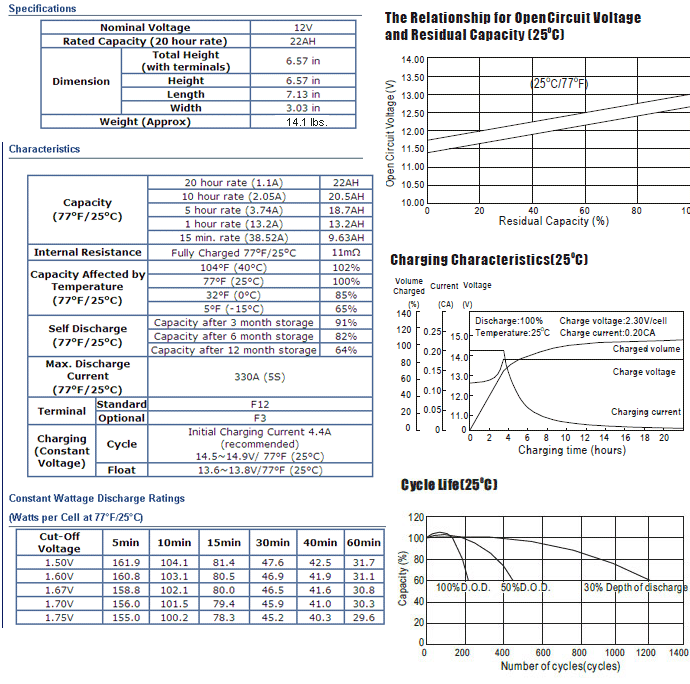

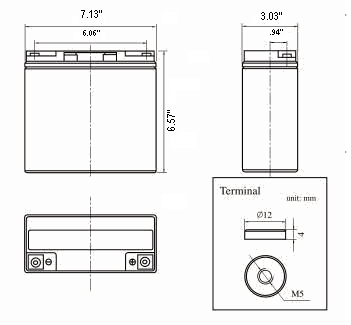

Nominal Voltage 12V Rated Capacity (20 hour rate) 22AH Dimension Total Height (with terminals) 6.57 in Height 6.57 in Length 7.13in Width 3.03 in Weight (Approx) 14.77 lbs

Capacity (77oF/25oC) 20 hour rate (1.1A) 22AH 10 hour rate (2.05A) 20.5AH 5 hour rate (3.74A) 18.7AH 1 hour rate (13.2A) 13.2AH 15 min. rate (38.52A) 9.63AH Internal Resistance Fully Charged 77oF/25oC 11mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 330A (5S) Terminal Standard F12 Optional F3 Charging (Constant Voltage) Cycle Initial Charging Current 4.4A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 161.9 104.1 81.4 47.6 42.5 31.7 1.60V 160.8 103.1 80.5 46.9 41.9 31.1 1.67V 158.8 102.1 80.0 46.5 41.6 30.8 1.70V 156.0 101.5 79.4 45.9 41.0 30.3 1.75V 155.0 100.2 78.3 45.2 40.3 29.6
