Tempest TR200-6A

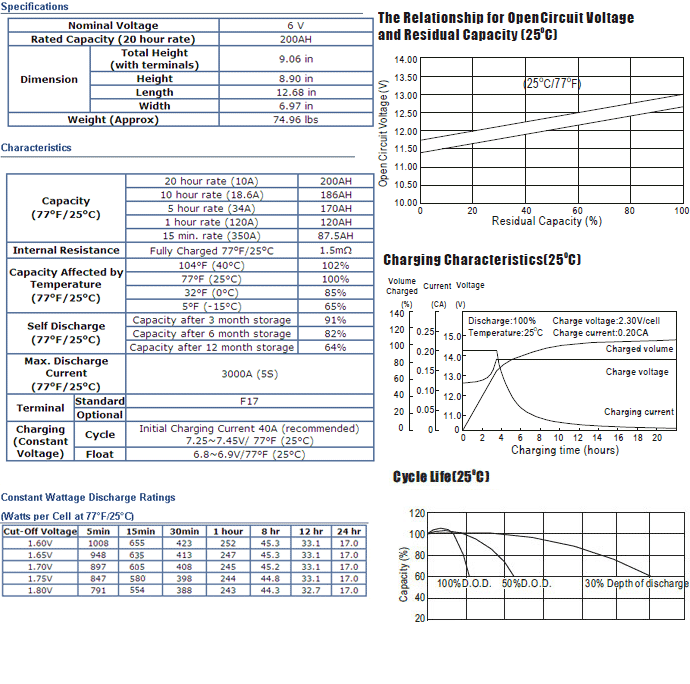

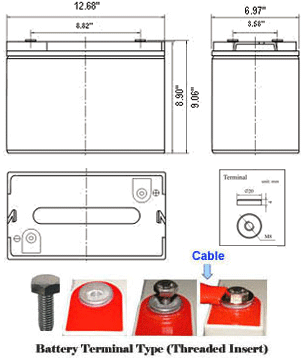

Nominal Voltage 6 V Rated Capacity (20 hour rate) 200AH Dimension Total Height (with terminals) 9.06 in Height 8.90 in Length 12.68 in Width 6.97 in Weight (Approx) 74.96 lbs

Capacity (77oF/25oC) 20 hour rate (10A) 200AH 10 hour rate (18.6A) 186AH 5 hour rate (34A) 170AH 1 hour rate (120A) 120AH 15 min. rate (350A) 87.5AH Internal Resistance Fully Charged 77oF/25oC 1.5mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 3000A (5S) Terminal Standard F17 Optional   Charging (Constant Voltage) Cycle Initial Charging Current 40A (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.9V/77°F (25°C)

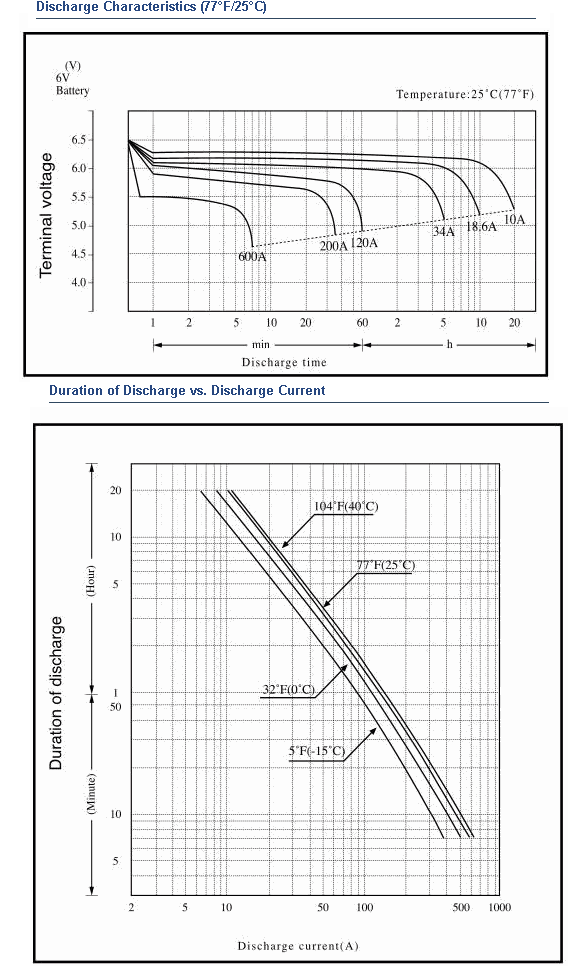

Cut-Off Voltage 5min 30min 1 hour 8 hr 12 hr 24 hr 1.60V 1008 423 252 45.3 33.1 17.0 1.65V 948 413 247 45.3 33.1 17.0 1.70V 897 408 245 45.2 33.1 17.0 1.75V 847 398 244 44.8 33.1 17.0 1.80V 791 388 243 44.3 32.7 17.0
