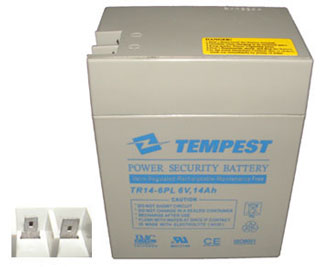

Tempest TR14-6PL

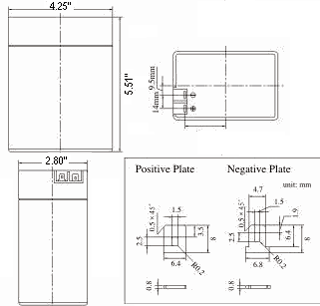

Nominal Voltage 6 V Rated Capacity (20 hour rate) 14AH Dimension Total Height (with terminals) 5.51 in Height 5.51 in Length 4.25 in Width 2.80 in Weight (Approx) 6.17 lbs

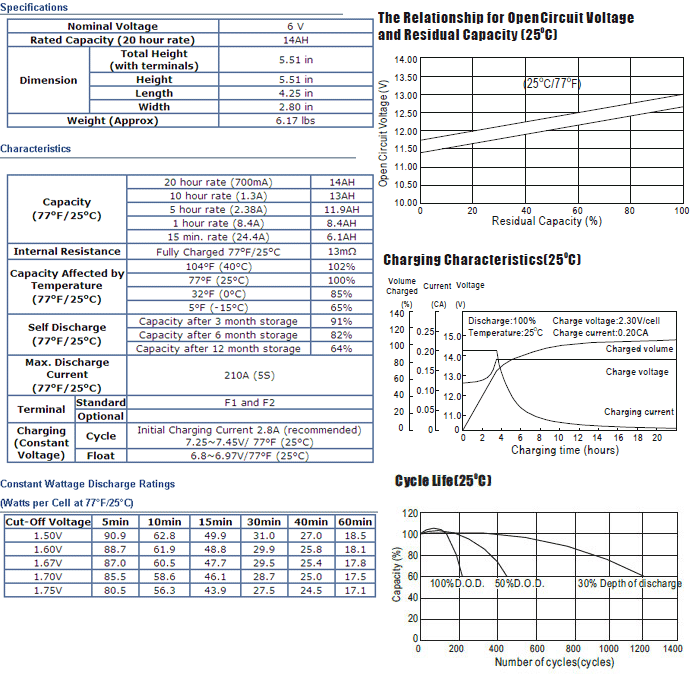

Capacity (77oF/25oC) 20 hour rate (700mA) 14AH 10 hour rate (1.3A) 13AH 5 hour rate (2.38A) 11.9AH 1 hour rate (8.4A) 8.4AH 15 min. rate (24.4A) 6.1AH Internal Resistance Fully Charged 77oF/25oC 13mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 210A (5S) Terminal Standard PL Optional   Charging (Constant Voltage) Cycle Initial Charging Current 2.8A (recommended) 7.25~7.45V/ 77°F (25°C) Float 6.8~6.97V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 90.9 62.8 49.9 31.0 27.0 18.5 1.60V 88.7 61.9 48.8 29.9 25.8 18.1 1.67V 87.0 60.5 47.7 29.5 25.4 17.8 1.70V 85.5 58.6 46.1 28.7 25.0 17.5 1.75V 80.5 56.3 43.9 27.5 24.5 17.1
