Tempest TR100-12B

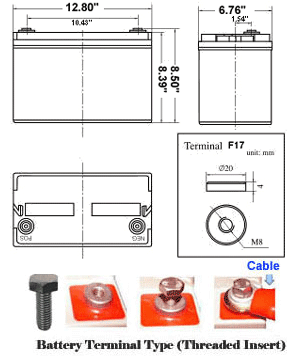

Nominal Voltage 12 V Rated Capacity (20 hour rate) 100AH Dimension Total Height (with terminals) 8.70 in Height 8.40 in Length 13.01 in Width 6.70 in Weight (Approx) 75.62 lbs

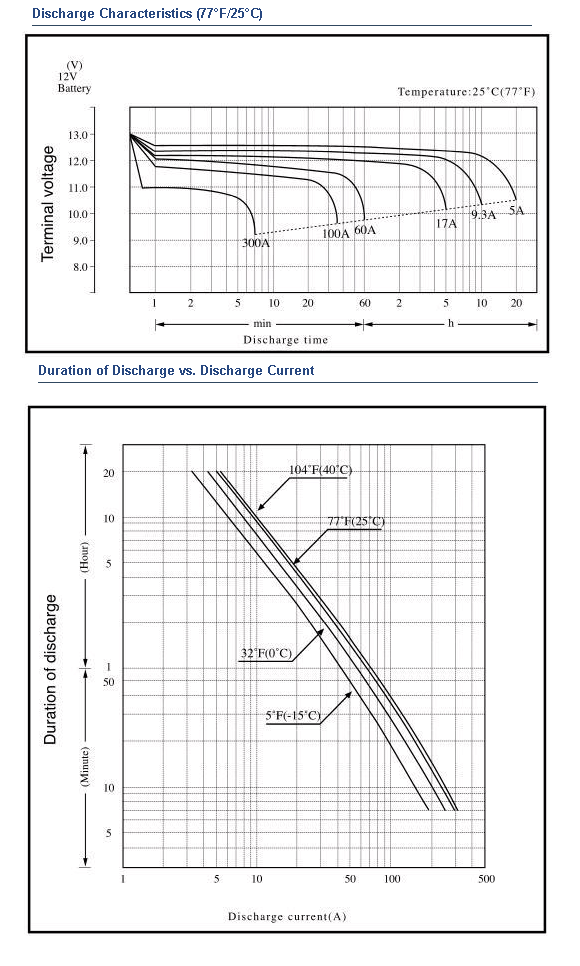

Capacity (77oF/25oC) 20 hour rate (5A) 100AH 10 hour rate (9.3A) 93AH 5 hour rate (17A) 85AH 1 hour rate (60A) 60AH 15 min. rate (1.75A) 43.75AH Internal Resistance Fully Charged 77oF/25oC 3.5mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 1500A (5S) Terminal Standard F11 Optional F17 Charging (Constant Voltage) Cycle Initial Charging Current 20A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.60V 668 488 390 235 168 129 1.65V 655 483 385 233 166 128 1.67V 647 478 380 231 165 127 1.70V 626 462 365 225 161 126 1.75V 598 442 349 216 157 124
