Tempest TR10-12A

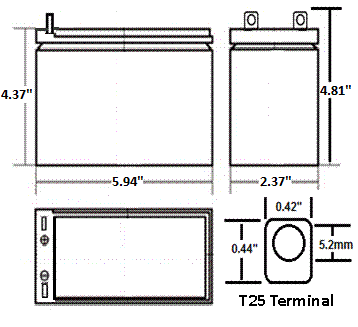

Nominal Voltage 12 V Rated Capacity (20 hour rate) 10AH Dimension Total Height (with terminals) 4.61 in Height 4.37 in Length 5.94 in Width 2.56 in Weight (Approx) 7.05 lbs

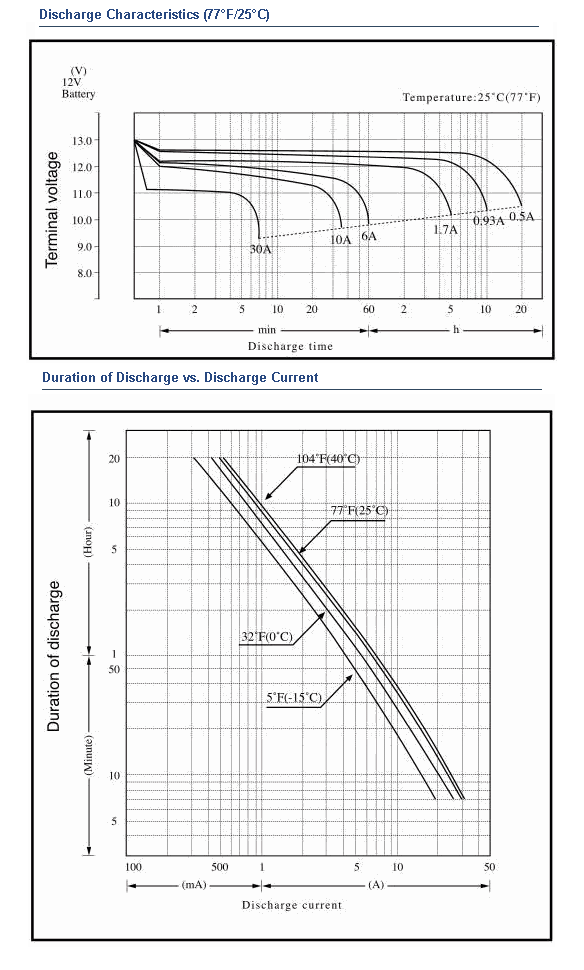

Capacity (77oF/25oC) 20 hour rate (500mA) 10AH 10 hour rate (930mA) 9.3AH 5 hour rate (1.7A) 8.5AH 1 hour rate (6A) 6.0AH 15 min. rate (17.5A) 4.38AH Internal Resistance Fully Charged 77oF/25oC 15mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 91% Capacity after 6 month storage 82% Capacity after 12 month storage 64% Max. Discharge Current (77oF/25oC) 150A (5S) Terminal Standard F1 Optional F2 Charging (Constant Voltage) Cycle Initial Charging Current 2A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 78.0 52.0 40.0 24.0 20.0 14.0 1.60V 76.1 51.3 39.1 23.4 19.1 13.8 1.67V 74.4 50.2 38.3 23.0 18.7 13.5 1.70V 73.5 49.6 37.6 22.5 18.5 13.4 1.75V 72.1 48.6 37.1 22.3 18.1 13.1
