12V 22Ah (270CCA) Tempest BAB22-12

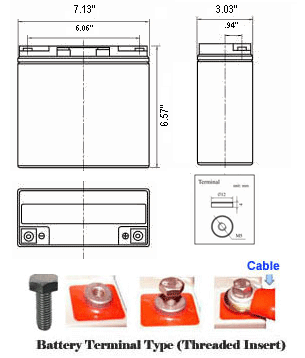

Nominal Voltage 12V Rated Capacity (20 hour rate) 22AH Dimension Total Height (with terminals) 6.57 in Height 6.57 in Length 7.13in Width 2.99 in Weight (Approx) 14.99 lbs

Capacity (77oF/25oC) 10 hour rate (2.05A) 20AH 5 hour rate (3.74A) 18AH 1 hour rate (13.2A) 15AH Internal Resistance Fully Charged 77oF/25oC 11mW Capacity Affected by Temperature (77oF/25oC) 104°F (40°C) 102% 77°F (25°C) 100% 32°F (0°C) 85% 5°F (-15°C) 65% Self Discharge (77oF/25oC) Capacity after 3 month storage 88% Capacity after 6 month storage 76% Capacity after 12 month storage 53% Max. Discharge Current (77oF/25oC) 330A (5S) Terminal Standard F1 Optional F2 Charging (Constant Voltage) Cycle Initial Charging Current 4.4A (recommended) 14.5~14.9V/ 77°F (25°C) Float 13.6~13.8V/77°F (25°C)

Cut-Off Voltage 5min 10min 15min 30min 40min 60min 1.50V 195 130 96.0 56.0 45.6 32.6 1.60V 190 127 95.5 55.5 45.3 32.3 1.67V 185 125 95.5 55.0 45.0 32.0 1.70V 180 120 92.0 54.5 44.5 31.8 1.75V 170 115 90.0 54.0 44.0 31.5
