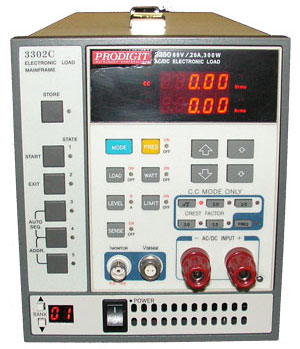

3250, 3251, 3252, 3253 Series AC/DC Electronic Load (Plug-in AC/DC Load Module)
**AC/DC, DC/DC, DC/AC testing.
**50-400Hz Power Transformer.
**Telephone PABX Ring Signal (15-25Hz).
**Battery discharge.
**Can be Paralleled more units for higher power.
**R&D, QC, and ATE system.
**Can be configured in 3300 series Mainframe.
**CC, CR, Crest Factor Mode.
**Dual 4 1/2 V/A/W/VA Meter on each module.
**Last Setting Memory on each module.
**Five Memory on Mainframe.
**GO/NG limit check.
**Protections against V, I, W, and °C
**BNC-Clip cable 1pc.
**Banana Plug 2pcs.
**Lug/Hook terminal 2pcs.
**Operation Manual 1pc.
**Mainframe:
**3300A for Manual and Remote.
**3301(A) for Manual only.
**3302 for Manual and Remote.
**Cooling: Advance Fan Cooled.
**Weight: 3.5 Kg / Module.
**Dimension: 108Wx143Hx405Dmm.
**1 Meter GPIB Cable
**2 Meter GPIB Cable
**The 3250, 3251, 3252, 3253 series AC&DC Load Module in the first on the market, providing an ideal testing solution for Power Transformers and other AC/DC sources.
**The 3250, 3251, 3252, 3253 series Module can be used with 3302 and 3300A Mainframes.These modules can be used in any configuration with 3310 series. Please refer to 3300 series Mainframe for more details.
**The 3250, 3251, 3252, 3253 Series combined with the 3300A mainframe is ideal for production. Quality control and Incoming Inspection; providing 5 programmable front panel memory locations and GO/NG test function capabilities.
