3310D, 3311D, 3312D, 3314D, 3315D UPS Test Loads

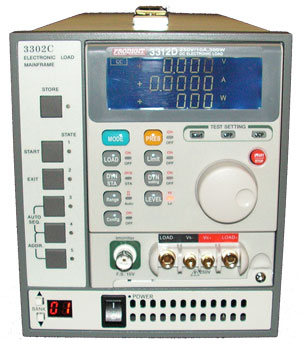

3310D, 3311D, 3312D, 3314D, 3315D Series DC Electronic Load (Plug-in Dynamic Load Module)
Applications Voltage/Current source SMPS transient response Current limit testing and battery emulation Battery charger Battery discharge R&D, Quality Control ATE system Production testing	Features Can display V.A.W. value simultaneously LCD large Display Knob to adjust setting value OCP, OPP test function CC, CR, CV, CP, Dynamic, Short Mode 4 1/2 V/A/W Meter on each module 150 Store/Recall Memory on 3300C/3302C Mainframe SHORT time setting and SHORT_VH, SHORT_VL setting function Voltage meter display "+" or "-" is selectable Protections against V, I, and °C
Accessories BNC-Clip cable 1pc. Banana Plug 2pcs. Hook terminal 2pcs. Operation Manual 1pc	General Mainframe: Cooling: Force Fan Cooled. Weight: 3.5 Kg/Module. Dimension: 108Wx143Hx405Dmm.
Options **Power supply testing Fixture For PC power supply testing	Descriptions 3310D, 3311D, 3312D, 3314D, 3315D series Module are used with the 3302C single mainframe and 3300C 4ch Mainframes. Each 3310D, 3311D, 3312D, 3314D, 3315D Series Module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 Store/Recall memory which provides load set-up more efficiently. SHORT time setting and SHORT_VH, SHORT_VL setting function. Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is and external signal input so that load can have a simulated Arbitrary Waveform. OCP, OPP test function operated by both mainframe and module that will be more effective and accuracy on OCP, OPP testing. Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display "+" or "-" is selectable and 150 sets larger memory is much advance features than 3310C series.

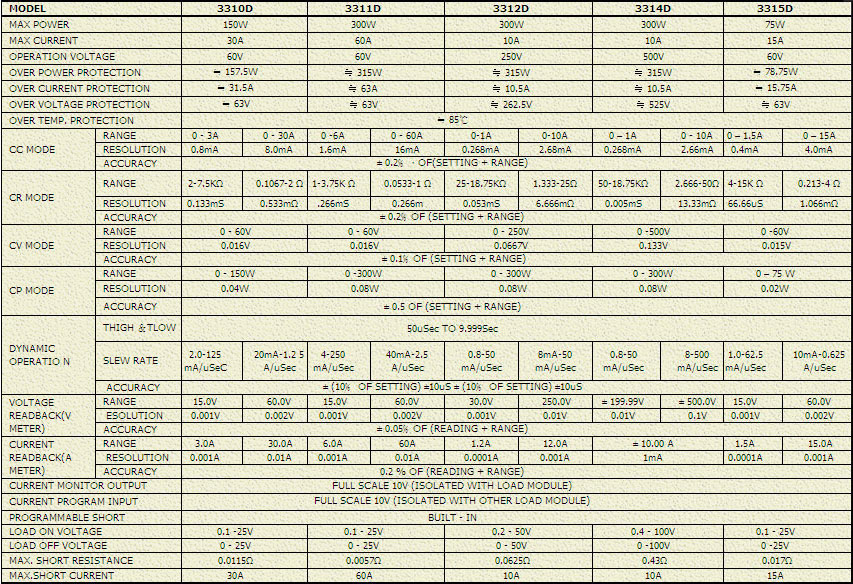

Specifications
