3256, 3256E, 3257 High Power AC / DC Electronic Load GPIB |
|
Accessories **AC Power Cord 1 pc **Vsense cable 1pc **Banana Plug 2pcs **Lug/Hook terminal 2pcs **Operation Manual 1pc |
Applications **UPS output loading test **AC / DC , DC / DC , DC /AC testing **50-400Hz Power Transformer **Telephone PABX Ring Signal (15-25Hz) **Can be Paralleled more units for higher power **R&D, QC, and ATE system |
Features **CC, CR, Crest Factor Mode **Dual 4 1/2 Meter Display **Last Setting Memory **Five Memory **Threshold Upper/Lower limit capability **Protections against V, I, W, and °C |
General **Power: 115V/230 Vac ± 10% 50/60Hz **Cooling: Advanced Fan Cooled. **Dimension: 483Wx177Hx445Dmm **Weight: 1200W: 18.5 Kg. **1800W: 21.5 Kg. **Dimension: 483Wx177Hx445Dmm |
Options **1 Meter GPIB Cable **2 Meter GPIB Cable |
Descriptions **3256, 3257 is a 300V high Power AC and DC Load in one unit, it provides an ideal testing solution for UPS, AVR, Battery, Power Transformer, etc. **3256E is a high power version of 3256, where 3256 and 3257 are suitable for 115/230V. **Each 3256, 3257 has its own control and display panel, with five states. **Memory controls and GO/NG check function. |

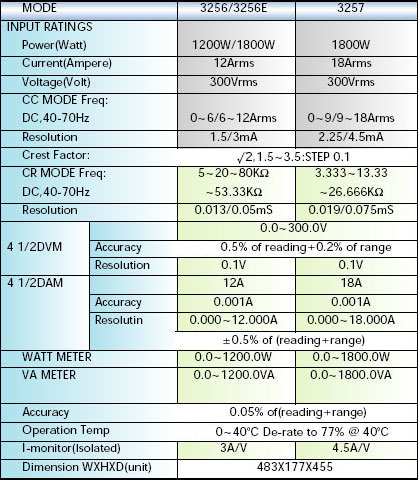

Specifications | |
